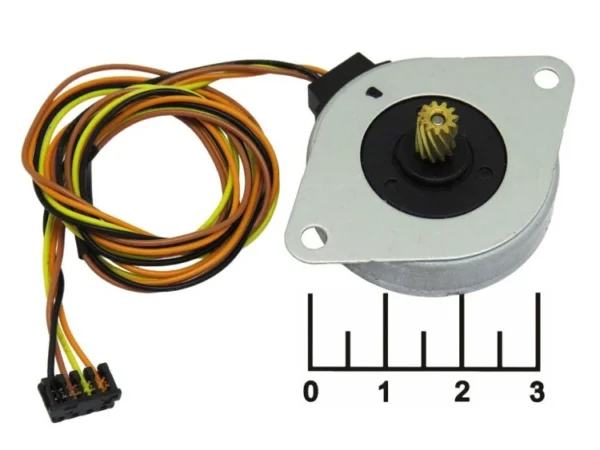

DC 5V-12V Micro MOATECH 2-Phase 4-Wire Stepper Motor Round Ultra-thin 35MM Stepping Motor 23.2 Ohms 3.75 Degree with Gear
Specification:
MOATECH ultra thin round 35mm stepper motor, 2-phase 4-wire, step angle is 3.75 degree.
The thickness of the motor is only 13.4 mm,
In addition, the rotation angle of the stepper motor is controlled by pulse signals, and is often used in
precision instruments, digital appliances etc.
1.Brand: MOATECH
2.Model: SP-35RC-810S
3.Motor diameter: 35mm
4.Motor thickness: 13.4mm
5.Output shaft diameter: 2.0mm
6.Output shaft length: 9mm
7.Cable length: 400mm
8.Weight: 36g
9.Motor type: 2-phase 4-wire stepper motor
10.Phase: Orange red line: A+, Yellow line: A -, Brown line: B+, Black line: B-
11.Phase resistance: about 23.2 ohms
12.@6V short circuit current: 0.25A
13.Note: There is no information on the inventory of motors. We only estimate based on its internal resistance value of 23.2 ohms. It is suitable for phase voltages of 5V-12V, and is more suitable for medium speed pulse signals. Its driving current is about 0.3A.
