CD74HC4067 alapú analóg multiplexer modul
16 csatorna, digitális címzéssel választható S0-S3-mal

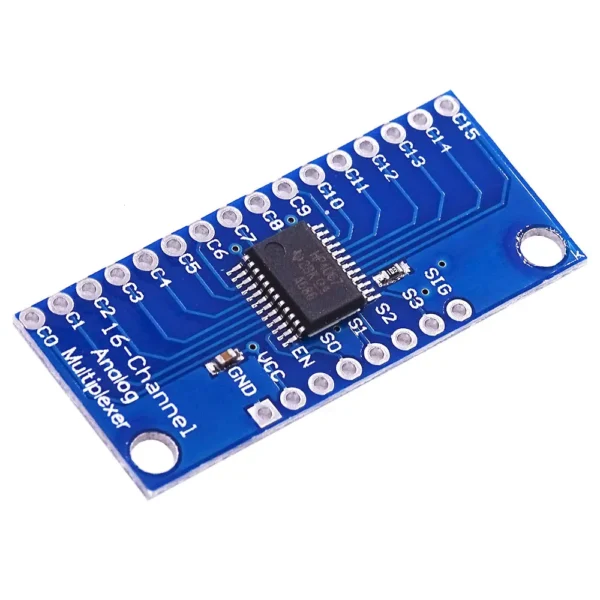

CD74HC4067 16-Channel Analog Digital Multiplexer Breakout Board
Features:
2V to 6V operation
“On” resistance: 70 Ohms 4.5V
6ns break-before-make 4.5V
Wide operating temperature range: -55C to 125C
Function: gathering all the way ADC 16 analog signals.
Use CD74HC4067 16-channel analog signal switch
Analog Input: C0-C15 16 channels
Analog output: DIG
Channel Control: S0-S3
2V to 6V operation
“On” resistance: 70 Ohms 4.5V
6ns break-before-make 4.5V
Wide operating temperature range: -55C to 125C
Function: gathering all the way ADC 16 analog signals.
Use CD74HC4067 16-channel analog signal switch
Analog Input: C0-C15 16 channels
Analog output: DIG
Channel Control: S0-S3
